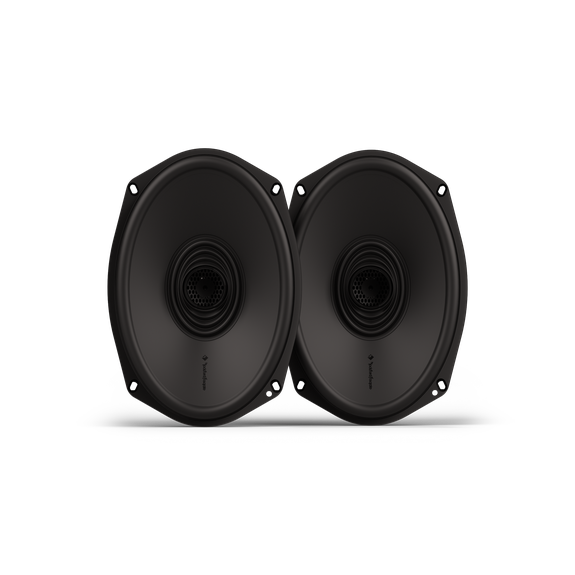

6x9” 2-Way Element Ready Speakers for 2024+ Harley-Davidson (Gen-2) TMS24-69
6x9” 2-Way Element Ready Speakers for 2024+ Harley-Davidson (Gen-2) TMS24-69
The next generation of TMS motorcycle speakers revolutionizes on-bike audio with unparalleled sound quality. Engineered for the ultimate listening experience, they deliver a perfectly balanced sound profile; enhanced mids, powerful bass, and ultra-clear highs. Crafted from premium materials, these speakers set a new standard for performance, durability and reliability for the motorcycle environment. Sold in pairs (2 each).
Precision-Tuned: Featuring long-throw woofers for high output and deep, extended low-end response, these speakers deliver powerful yet balanced sound. The large voice coil and extended frequency range enhance bass output, ensuring louder, more dynamic, and long-lasting performance.
Performance Engineered: Each element of these speakers is meticulously engineered for peak performance. Now handling up to 150 watts each — twice the power of before — these speakers feature a heat-resistant motor structure and radiator ring to efficiently dissipate heat, ensuring consistent, powerful sound even under the most demanding conditions.
Direct Fitment: Designed for a seamless upgrade, these speakers offer a direct drop-in fit for factory mounting locations.
Element Ready™: Purpose built for the harsh motorcycle environment. The speakers are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio will stand the test of time.
Compatibility Chart: Please review below tab for fitment before purchasing.
2024+ TMS24-69 | Launch
2024+ TMS24-69 | Overview
2024+ TMS24-69 | Installation (jumps to 28:11)
NEW
$499.99
Checking product inventory...
Notify Me When Back In Stock:
Overview
Videos
Technologies
Specifications
Compatibility
Support
Loud. Clear. Relentless.
Engineered for performance and precision, the 2nd generation TMS 6x9” saddlebag speaker is a long-throw, high-output design with an extended low-end response and reduced distortion for a richer, more balanced listening experience. It features direct drop-in fitment for 2024+ Harley-Davidson® CVO Road Glide and CVO Street Glide, and direct fitment for 1998+ Harley-Davidson® models equipped with an aftermarket Rockford Fosgate bag-lid cut-in kit.
Kit Includes:
• (2) 6x9” TMS 2.0 speakers
• Mounting hardware
FEATURES AT A GLANCE
- Purpose Built for 2024+ factory H-D® ABS bags with HD24BL69
- Upgrade for 2014-2023 factory H-D® ABS bags with TMS69BL14
- Upgrade for 1998-2013 factory H-D® ABS bags with TMS69BL9813
- Element Ready™ to withstand the harsh outdoor environment like dust, water, and UV rays
- Precision-tuned, long throw, high output design
- Extended frequency range for increased low-end response
- Integrated motor cover prevents valuables in saddle bag from heat damage
- Curvilinear poly cone with 10% carbon-fill for ideal stiffness and damping
- Santoprene® VAST surround resists dry rot and ensures long-lasting durability
- Breathable, durable Poly-Nomex spider resists moisture and wear
- UV-stable Domamid PA66 composite basket with reinforced 30% glass fiber
- Neodymium is up to 35% lighter and 65% smaller over traditional ferrite and ceramic
- New larger voice coil and magnet for improved power handling
- Dual neodymium motor redirects magnetic field to boost motor strength
- 2nd order crossover for high-frequency clarity, reliability, and listening comfort
- Vented Kapton® voice coil former greatly improves airflow and power handling
- ICC (Integrated Concealed Crossover) eliminates external black boxes
- Braided stitched tinsel leads resist fatigue, corrosion, and breakage
- Corrosion-resistant tin-plated terminals fit Harley-Davidson® female spades
- 2-Year Warranty
TMS24-69 | Product Launch
Engineered to be loud, clear, and relentless, the new 2024+ audio kits deliver perfectly balanced sound—rich mids, strong bass, and ultra-sharp highs.
TMS24-69 | Product Overview
Engineered for the ultimate ride, these speakers deliver a perfectly balanced sound profile—featuring enhanced mids, deep, powerful bass, and crystal-clear highs.
HD24-STG2 & STG3 | Installation
This video will walk you through the installation process for our new aftermarket Stage-2 and Stage-3 audio systems for 2023.5 and newer Harley-Davidson models with the newer Skyline™ OS. For speaker installation, jump to timecode 15:08.
IDHS™ Inductive Damping Heat Sink
Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion and back EMF (Electo-Magnetic Force) of the woofer. IDHS also utilizes fins to radiate heat and reduce voice coil temperature.
Neodymium Motors
Neodymium is up to 35% lighter and 65% smaller over traditional ferrite and ceramic, while having the same motor strength (Bl). This allows the speaker to fit factory locations without any modification.
Performance Engineered
Rooted in a legacy of American innovation, our products are proudly designed and developed in Tempe, Arizona, reflecting decades of expertise.
Coherent-Phase Alignment
Precisely recessing the tweeter inside the woofer voice coil geometry ensures phase-aligned sound waves from both drivers arrive at the listener’s ears simultaneously. This coherent-phase response minimizes destructive interference and phase cancellation, resulting in significantly improved stereo imaging, spatial accuracy, and vocal clarity.
CTA-2031
Power handling on Rockford Fosgate speakers conform to CTA-2031 industry standards.
Learn more
CTA-2031
Power handling on Rockford Fosgate speakers conform to CTA-2031 industry standards.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
Learn more
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
IPX6 Water Intrusion Rating
Water projected in powerful jets from any direction shall have no harmful effects.
Learn more
IPX6 Water Intrusion Rating
Water projected in powerful jets from any direction shall have no harmful effects.
ICC Crossover
The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier ...
Learn more
ICC Crossover
The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier installation.
Dust Resistant
Displays and motor structures are sealed tight so they look and sound as clear as possible ...
Learn more
Dust Resistant
Displays and motor structures are sealed tight so they look and sound as clear as possible no matter how many times you hit the trails.
UV Inhibitor Materials
Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested ...
Learn more
UV Inhibitor Materials
Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested in accordance with ASTM D4329 testing and certification procedures.
Water Resistant
IPX Ratings allow for the components to be directly sprayed with water without ingress.
Learn more
Water Resistant
IPX Ratings allow for the components to be directly sprayed with water without ingress.
Corrosion Protection
Components are tested for salt spray corrosion resistance.
Vibration Resistant
Components are able to withstand shock and vibration conditions common with outdoor vehicles.
Learn more
Vibration Resistant
Components are able to withstand shock and vibration conditions common with outdoor vehicles.
CEA-2031 Compliant
Midrange Size
(Nominal Diameter)
(Nominal Diameter)
6x9"
Speaker Type
2-Way
Frequency Response (Hz)
50 Hz – 20 kHz
Nominal Impedance (Ohms)
4Ω
Power Handling (RMS)
150 Watts
Power Handling (MAX)
300 Watts
Sensitivity
(dB @ 1W/1M)
(dB @ 1W/1M)
91.4 dB
Voice Coil Diameter (in/mm)
1.5” (38.6 mm)
Crossover
4 kHz @ 12dB/Octave
Mounting Hardware
Yes
Grille/Trim Ring Included
No
In The Box
(1 pr) TMS24-69 Speaker
1130-80766-01 AP Pack
• (8) Phillips Tapping Screws, M4x1.4, 15.5mm
1130-80766-01 AP Pack
• (8) Phillips Tapping Screws, M4x1.4, 15.5mm
Shipping Weight
7 Lbs. (3.18 Kg)
YES | POSSIBLE |
NO |
NOT AVAILABLE |
|---|
Compatible with factory equipment
Can fit with aftermarket items below
Model NOT compatible with kit
Model not produced this year
REQUIRED Skyline™ OS |
YES H-D® ABS Saddlebags3 |
YES H-D® Power Lock2 |
YES Factory Speaker Lids3 |
NO Harley-Davidson® AudioSKY1/2/3 |
|---|
YES |
2024+ |  |
HD24BL69 |  6x9" Saddlebag Cut-In Speaker Kit for 2024+ Harley-Davidson |
YES |
2024+ |  |
HD24-STG3 | Stage-3 Audio Kit for 2024+ Harley-Davidson |
NO |
2014 — 2023 |  |
HD14-SBSUB | Dual 10" Saddlebag Subwoofer Kit for 2014-2023 Harley-Davidson Street Glide & Road Glide |
NO |
2014 — 2023 |  |
HD14-STG5 | Stage-5 Speaker & Amp Kit for 2014-2023 Harley-Davidson Street Glide & Road Glide |
NO |
2014 — 2023 | |
HD14-PMX-STG5 | Stage-5 Complete Kit for 2014-2023 Harley-Davidson Street Glide & Road Glide |
YES |
2014 — 2023 |  |
TMS69BL14 | Saddlebag Kit for 2014+ Harley-Davidson Models |
YES |
2014 — 2023 |  |
HD14RK-STAGE2 | 2-Speaker & Amp Kit for 2014+ Road King |
YES |
2014 — 2023 |  |
HD14-STG3 | Stage-3 Speaker & Amp Kit for 2014-2023 Harley-Davidson Street Glide & Road Glide |
YES |
2014 — 2023 | |
HD14-PMX-STG3 | Stage-3 Complete Kit for 2014-2023 Harley-Davidson Street Glide & Road Glide® |
YES |
1998 — 2013 |  |
TMS69BL9813 | Saddlebag Audio Kit for 1998-2013 Harley-Davidson Models |
YES |
1998 — 2013 |  |
HD9813RK-STAGE2 | 2-Speaker & Amp Kit for 1998-2013 Road King |
YES |
1998 — 2013 |  |
HD9813RG-STG3 | Stage-3 Speaker & Amp Kit for 1998-2013 Harley-Davidson Road Glide |
YES |
1998 — 2013 |  |
HD9813SG-STG3 | Stage-3 Speaker & Amp Kit for 1998-2013 Harley-Davidson Street Glide & Electra Glide |
| MODEL |
CHASSIS |
2023 |
2024 |
2025 |
|---|---|---|---|---|
 Road Glide® |
FLTRX | X | ✓ | ✓ |
 Road Glide® ST |
FLTRXST | X | — | — |
 Road Glide® Special |
FLTRXS | X | — | — |
 Road Glide® Special 120th Anniversary |
FLTRXSANV | X | — | — |
 Street Glide® |
FLHX | X | ✓ | ✓ |
 Street Glide® ST |
FLHXST | X | — | — |
 Street Glide® Special |
FLHXS | X | — | — |
 Street Glide® Special 120th Anniversary |
FLHXSANV | X | — | — |
| MODEL |
CHASSIS |
2023 |
2024 |
2025 |
|---|---|---|---|---|
 Electra Glide Highway King |
FLHFB | X | — | — |
 Road King® Special |
FLHRXS | X | X | X |
| MODEL |
CHASSIS |
2023 |
2024 |
2025 |
|---|---|---|---|---|
 Road Glide® Limited |
FLTRK | X | X | — |
 Street Glide® Ultra |
FLHXU | — | — | ✓ |
 Ultra Limited |
FLHTK | X | X | — |
 Ultra Limited 120th Anniversary |
FLHTKANV | X | — | — |
 Ultra Limited Shrine Edition |
FLHTK | X | — | — |
| MODEL |
CHASSIS |
2023 |
2024 |
2025 |
|---|---|---|---|---|
 CVO Road Glide® |
FLTRXSE | ✅SKY2 | ✅SKY2 | ✅SKY2 |
 CVO™ Road Glide® RR |
FLTRXRRSE | — | — | ✓ |
 CVO Road Glide® ST |
FLTRSXTSE | — | ✅SKY2 | ✅SKY2 |
 CVO Road Glide® Limited 120th Anniversary |
FLTRKSEANV | XRF1 | — | — |
 CVO Street Glide® |
FLHXSE | ✅SKY2 | ✅SKY2 | ✅SKY2 |
| MODEL |
CHASSIS |
2023 |
2024 |
2025 |
|---|---|---|---|---|
 Freewheeler® |
FLRT | XNR | XNR | XNR |
 Road Glide 3 |
FLTRT | X | X | X |
 Tri Glide® Ultra Classic® |
FLHTCUTG | X | X | X |
 Tri Glide® Ultra 120th Anniversary |
FLHTCUTGANV | X | — | — |
GRAY TEXT
indicates nomenclature used on some early models and later inherited.
2
H-D® Power Lock on factory Harley-Davidson bags are compatible.
3
Saddlebags must be factory Harley-Davidson® ABS plastic to insure proper fitment with bag-lid and subwoofer kits.
Fiberglass saddlebags and lids are not compatible. Color matched speaker lids are not compatible.
4
Stretched Saddlebags not optimized for kits with subwoofers. Contact technical support for suggested harness brace.
5
Tour-Pak® must be detached in order to install and remove subwoofer enclosures.
NR
No Radio equipped from factory.
RF1
RF Stage I: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and saddlebag amplifier.
RF2
RF Stage II: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and saddlebag amplifier.
SKY1
Skyline RF Stage I: Factory equipped with Skyline OS and "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and 500W primary amplifier.
This system replaces and is not designed to be used with factory equipped audio.
Models with factory Harley-Davidson® Saddlebag Speaker Lids will also require TMS24-69 speakers.
SKY2
Skyline RF Stage II: Factory equipped with Skyline OS and "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and 500W primary amplifier.
This system replaces and is not designed to be used with factory equipped audio.
Models with factory Harley-Davidson® Saddlebag Speaker Lids will also require TMS24-69 speakers.
SKY3
Skyline RF Stage III: Factory equipped with Skyline OS and "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way high-output speakers and 500W primary amplifier.
This system replaces and is not designed to be used with factory equipped audio.
Models with factory Harley-Davidson® Saddlebag Speaker Lids will also require TMS24-69 speakers.
