2014+ Harley-Davidson® Dual 10" Saddlebag Subwoofer Kit HD14-SBSUB

Beauty Shot of Harley-Davidson® Saddlebag Subwoofer Kit

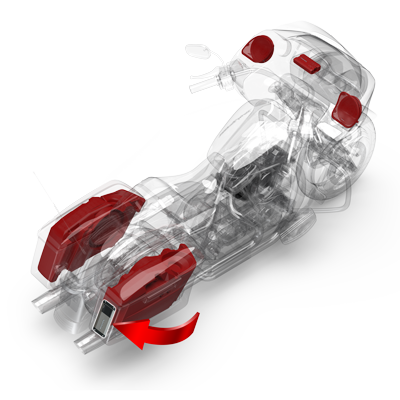

3D Installation Location in Saddlebags
Components Included in Kit
M5-800X4 Amplifier Included in Kit
3D Installation Location of Saddlebags on Stage-2 Systems
3D Installation Location of Saddlebags on Stage-3 Systems
Installation Shot of Loading Subwoofer into Saddlebag
Alternate Installation Shot of Loading Subwoofer into Saddlebag
Detail Shot of Subwoofer Enclosure Before Loading into Saddlebag

2014+ Harley-Davidson® Dual 10" Saddlebag Subwoofer Kit HD14-SBSUB

Next level performance with Rockford Fosgate's 800 Watt Dual 10" subwoofer system, purpose-built for 2014+ Harley-Davidson touring models.

Features and Benefits:

Plug-and-Play Design: Designed to work right out of the box. The included wiring and cutting template make for easy installation, all to ensure less time in the garage and more time out riding.

Full Throttle Bass Output: Finally, bass for your bike. The dual 10” subwoofers and enclosures were purpose built for the motorcycle environment and deliver that on-road audio experience you’ve been waiting for, even at freeway speeds.

Flexible Bass System: Sound when you want it, space when you need it. This patent pending design allows you to remove one or both subwoofers easily with no tools. So, if you need your bags for a long ride, this flexible system allows for just that.

Rockford Motorcycle Ecosystem: Everything was purpose-built to seamlessly work with your existing Rockford Fosgate Harley-Davidson system. With a few simple connections this dual bass system integrates flawlessly.

Compatibility Chart: Refer to our compatibility chart to verify system requirements and fitment before purchasing.

Click to watch video Watch The Ride, Reinvented
Click to watch video Watch Product Overview
Click to watch video Watch Installation Tutorial
Click to download PDF Download Amp Tuning Guide

Read More
0 Reviews
$2259.99
Checking product inventory...
+
+

Notify Me When Back In Stock:

Thanks! You're on the list!

Overview

Features and Benefits

When you want that next level audio performance on your 2014 or newer Harley-Davidson motorcycle, our all new 2014+ subwoofer kits... reinvent the ride. Designed and engineered for easy integration and superior flexibility, the 800 watt, dual 10-inch subwoofer kit is built for true motorcycle, on-road performance. The plug-and-play design paired with freeway speed output create the best in class on-bike, bass experience. This subwoofer system was designed to work with your Rockford Fosgate aftermarket audio system. This kit is designed to work with select 2014+ Electra Glide®, Road Glide®, Street Glide® models.  Refer to our COMPATIBILITY CHART to verify system requirements and fitment before purchasing.

Features At A Glance

  • Plug and Play design for easy installation
  • Play all day, easy to integrate, and keep music playing for extended lengths of time
  • Designed for use with 2014+ Factory Harley-Davidson® Hardshell Bags
  • Purpose built for select 2014+ Harley-Davidson® Street Glide® and 2015+ Road Glide®
  • M5-800X4: 800 Watt 4-Channel IPX6 Amplifier
  • Comes loaded with M1D2-10B 10" Element Ready™ Subwoofer (No RGB LED Color Optix)
  • Includes sealing plug if enclosures need to be removed
  • No fasteners needed to keep enclosures in place
  • Dual air space keeps TMS saddlebag speakers separate from subwoofers
  • Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
  • Proprietary testing using RATS (Rockford Automated Testing System)
  • Klippel Verified certification program delivers the best possible loudspeakers
  • IPX6 Rated
  • 2-Year Warranty
Videos
Technologies
Element Ready™ Motorcycle

These models are protected against Dust, UV, Temperature, Water, Corrosion & Vibration.

Learn more
CTA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's ...

Learn more
IPX6 Water Intrusion Rated

Water projected in powerful jets from any direction shall have no harmful effects.

Learn more
Class-AD

This technology allows the amplifier to produce more power with less current draw from the vehicle's ...

Learn more
DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and ...

Learn more
P.O.W.E.R.

Power supply circuit design that allows the amplifier to increase output power as voltage increases.

Learn more
MEHSA 4 (Maximum Efficiency Heat Sink Application)

MEHSA4 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

Learn more
C.L.E.A.N. Set-Up

C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help ...

Learn more
Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

Learn more
Constant Power

Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying ...

Learn more
VAST Surround - Subs

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

Learn more
Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

Learn more
Specifications
Woofer Qty
2
Woofer Size
10"
Woofer Series
M1D2-10B
Nominal Impedance

(2Ω DVC wired to create 4Ω bridged amp load)
Power Handling
300 Watts RMS
1200 Watts Peak
Enclosure Type
Sealed
Enclosure Material
Rotomolded HDPE
Speaker Connector
2-pin Deutsch™/Amphenol™
Frequency Response
20 Hz – 750 Hz
Amplifier Type
Class-AD
Total Power
800 Watts
Grille/Trim Ring Included
Yes
Mounting Hardware
Yes
Included In The Box
(2) M1D2-10B subwoofers
(2) Subwoofer enclosures
(1) M5-800X4 amplifier
(1) Wiring kit
(2) Cutting templates
(1) Amp mounting plate
(1) 1315-75758-01 AP Pack (details below)
(12) Nylon zip ties 8 in
(8) Phillips screws M3 x 0.5 x 12 mm
(1) Hole saw OD 45 mm
(4) Washers OD 9 x ID 3.2 x T0.8
(4) Hex screws 3/16 in, 5/16-18 thread, 1.25 in
(4) Clip 5/16-18 thread
(2) Screw M3 x 0.5, 5 mm
(8) Screw thread cutting ST3.0, 6 mm
(2) Nylon plug ID 0.75 in
(2) Hex nut M3 x 0.5
(8) Phillips screw #8 x 0.75 in.
(1) Hex wrench 3/16 in
(2) Alcohol wipe
Dimensions
H 15.5 x W 21.5 x D 30 (shipping dims)
Shipping Weight
46 Lbs. (20.87 Kg)
Compatibility

This subwoofer system is designed to interface only with the below aftermarket audio kits and compatible Harley-Davidson® motorcycles. If your existing audio system and motorcycle are not listed below, it is not compatible.


Kit only compatible with standard sized Harley-Davidson® ABS plastic bags. Not compatible with stretched or early generation fiberglass bags. Not compatible with factory equipped amplifier or bulkhead wiring harness in saddlebag. If equipped with Tour-Pak, it must be removed prior to removing subwoofer enclosure. Kit requires factory Harley-Davidson® radio to be flashed (likely already done if below kit installed).






Required Audio System

AUDIO SYSTEM GENERATION DESCRIPTION
HD14RGSG-STAGE2 Gen-2 2014+ Harley-Davidson® Road Glide® & Street Glide® 2-Speaker & Amp Kit
HD14RGSG-STAGE3 Gen-2 2014+ Harley-Davidson® Road Glide® & Street Glide® 4-Speaker & Amp Kit
HD14U-STAGE2 Gen-2 2014+ Harley-Davidson® Road Glide® Ultra & Electra Glide® Ultra Classic® 4-Speaker & Amp Kit
HD14U-STAGE3 Gen-2 2014+ Harley-Davidson® Road Glide® Ultra & Electra Glide® Ultra Classic® 6-Speaker & Amp Kit
HD14-TKIT Gen-1 Power Harley-Davidson® Street Glide® (2014+) & Road Glide® (2015+) Front Audio Kit.


Compatible Harley-Davidson® Motorcycles

YEAR MAKE MODEL CHASSIS FAIRING
2014–2020 Harley-Davidson® Electra Glide® Ultra Classic®1 FLHTCU Bat Wing
2014–2020 Harley-Davidson® Electra Glide® Ultra Limited1 FLHTK Bat Wing
2021–2022 Harley-Davidson® Ultra Limited1 FLHTK Bat Wing
2021–2022 Harley-Davidson® Ultra Limited Shrine Edition1 FLHTK Bat Wing
2017–2019 Harley-Davidson® Electra Glide® Ultra Limited Low1 FLHTKL Bat Wing
2015-current Harley-Davidson® Road Glide® FLTRX Shark Nose
2022-current Harley-Davidson® Road Glide® ST2 FLTRXST Shark Nose
2015-current Harley-Davidson® Road Glide® Special2 FLTRXS Shark Nose
2015–2020 Harley-Davidson® Road Glide® Ultra1 FLTRU Shark Nose
2021–2022 Harley-Davidson® Road Glide® Limited1 FLTRK Shark Nose
2014-current Harley-Davidson® Street Glide® FLHX Bat Wing
2022-current Harley-Davidson® Street Glide® ST2 FLHXST Bat Wing
2014-current Harley-Davidson® Street Glide® Special2 FLHXS Bat Wing

1 Not compatible with factory equipped amplifier or bulkhead wiring harness in saddlebag.
2 Not compatible with factory equipped stretched saddlebags.

Support

Return Authorization

Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
