H-D Powered By Rockford Fosgate

6x9" Baglid Cut-In Kit

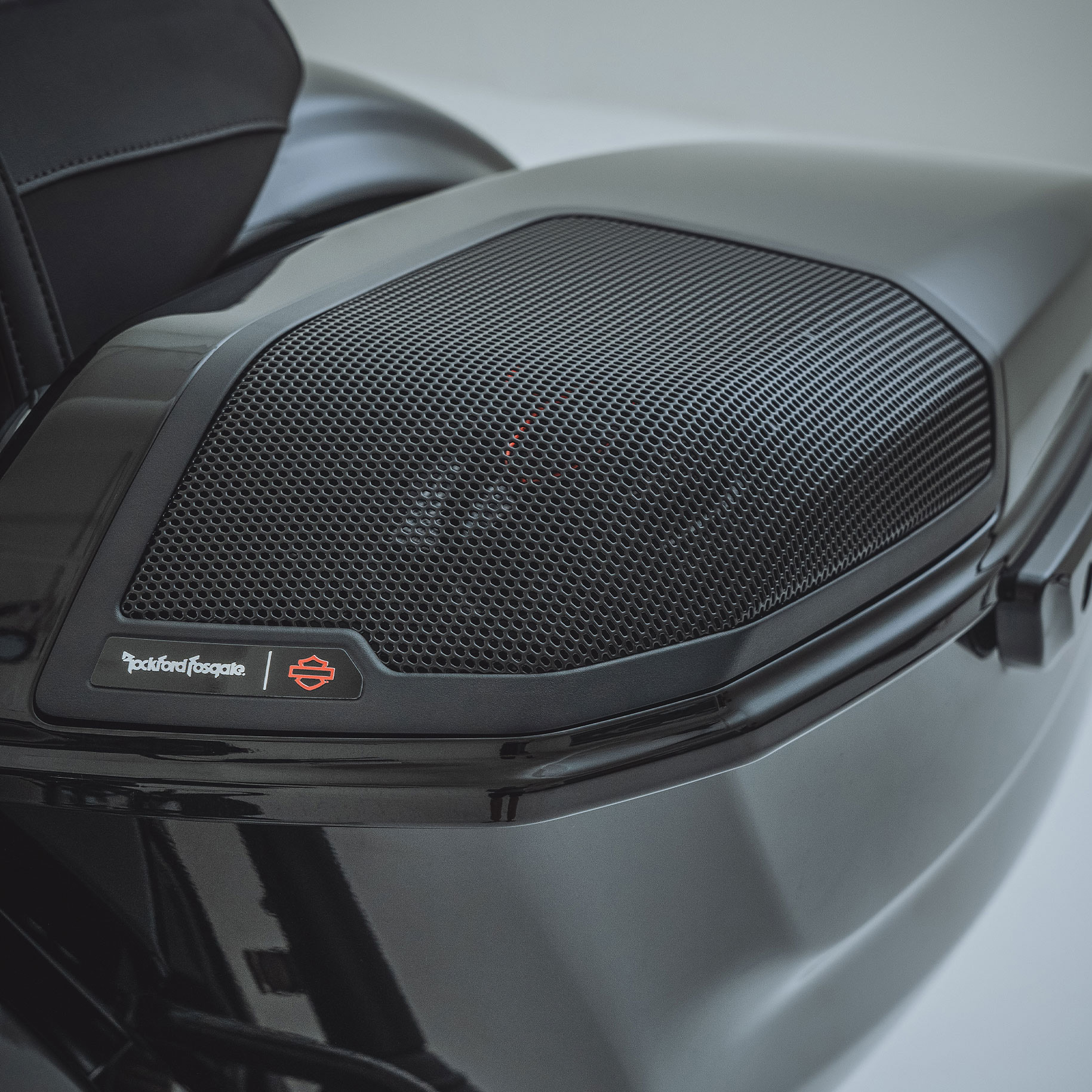

The wait is over, meet the new Harley-Davidson Audio powered by Rockford Fosgate saddlebag cut-In audio kit. This all-inclusive kit is crafted from premium materials and engineered for easy installation and was designed to deliver exceptional performance for 2024 and newer Road and Street Glide models. These saddlebag kits provide ultra durability, and reliability in the demanding motorcycle environment, and sets a new benchmark in audio upgrades. Let’s jump in and take a closer look.

The 250-watt saddlebag speakers were engineered for peak performance and feature a heat-resistant motor structure and radiator ring to efficiently dissipate heat, ensuring consistent, powerful sound even under the most demanding conditions.

The 6x9’s feature also long-throw woofers for high output and deep, extended low-end response, delivering powerful yet balanced sound. The large voice coil and extended frequency range enhance bass output, ensuring louder, more dynamic, and long-lasting performance.

So, let’s get into the kit and installation. The patent-pending top-loading bucket and backer design that adds additional rigidity in the saddlebag lids. Now to ensure smooth, precise cutting over the bag lid surface, we developed a newly designed precision-cut template with parallel ribbing - seamless installation, super easy. The robust, injection-molded, tube-style gasketed saddlebag speaker mount inserts from the outside of the lid, making it possible to accommodate larger 6x9 speakers, for unmatched audio performance.

As always, this saddlebag kit was designed to stand up to the outdoor environment and has passed rigorous testing for both vibration and water intrusion and features the same watertight seal as your stock saddlebags. So, If you're ready to upgrade your stock saddlebags, this kit is the ultimate solution.

The Saddlebag Cut-Ins are available in complete system kits from Harley-Davidson (see fitment below).

Product Overview

This all-inclusive kit is crafted from premium materials and engineered for easy installation and was designed to deliver exceptional performance for 2024 and newer Road Glide and Street Glide. These saddlebag kits provide ultra durability, and reliability in the demanding motorcycle environment, and sets a new benchmark in audio upgrades.

Saddlebag Template

Precision Cutting

To ensure smooth, precise cutting over the bag lid surface, we developed a newly designed precision-cut template with parallel ribbing.  The ribs add strength that provide a solid foundation for cutting accuracy, and accommodates both jig-saws and compact air saws.

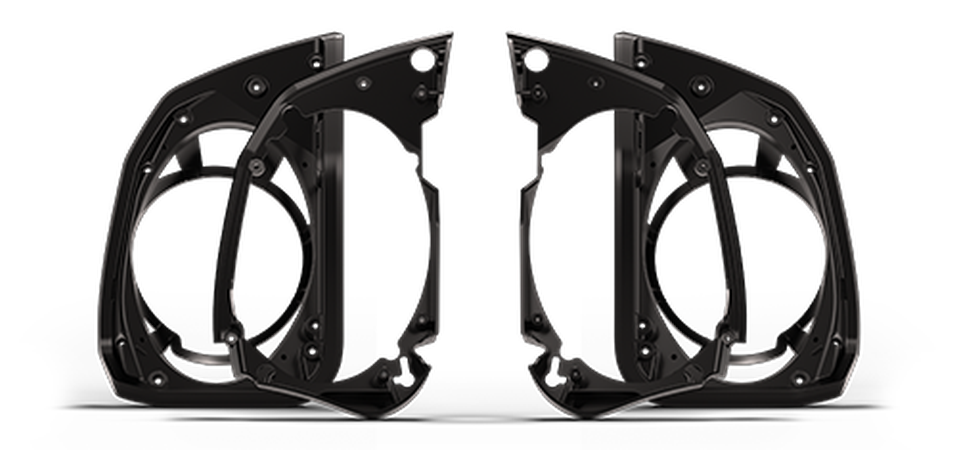

Bucket Insert

Self-Centering Design

The patent-pending top-loading bucket and backer design strengthens the assembly and allows it to accommodate deeper, more powerful drivers like the Stage III 6x9" for unmatched audio performance. The tube-style gasket design and the u-channel formed by mating the top bucket and backer ring keeps everything water-tight, so your valuables stay nice and dry.

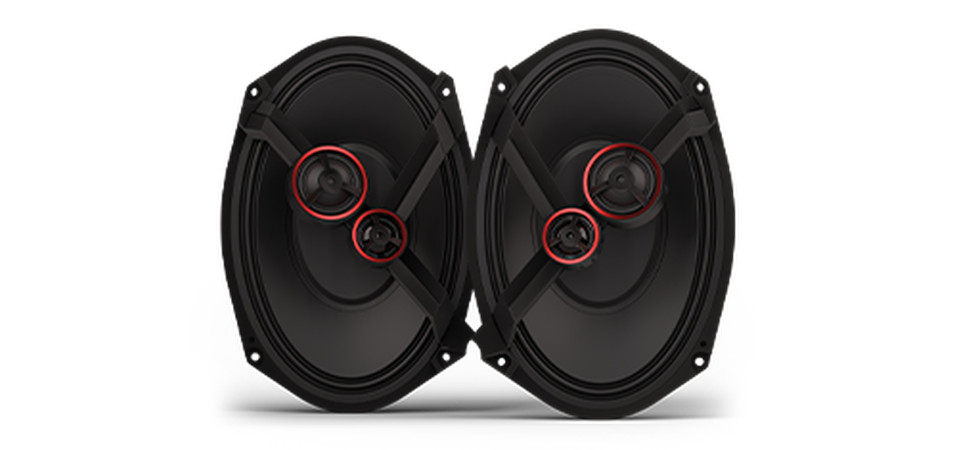

Stage III 6x9" Speakers

Low-End Extension

The 6x9” 3-way speakers feature injection molded Santoprene surrounds for low distortion and internal damping for outstanding mid-bass and - combined with a curvilinear poly cone - extends the frequency range for enhanced low-end response. The motor structure utilizes a large 2-inch voice coil and is combined with an ultra-efficient dual neodymium magnet for increased output and performance for an impressive 250-watts of power handling.

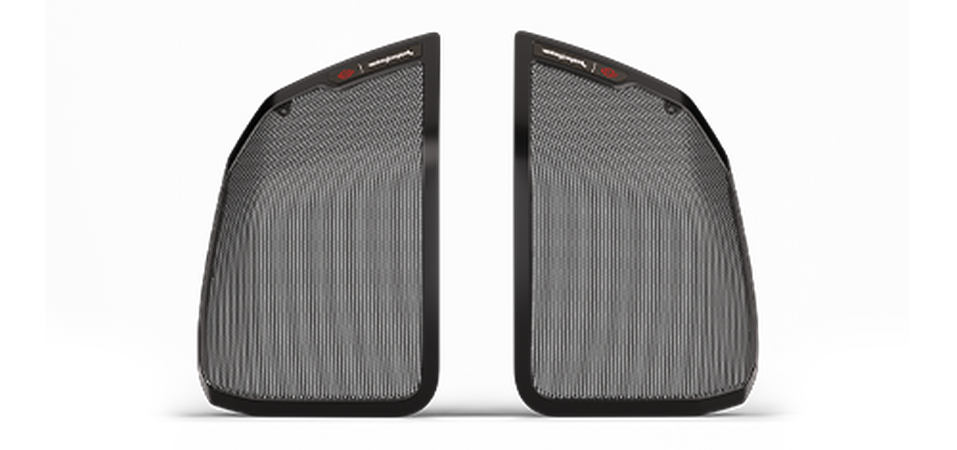

Saddlebag Grilles

Integrated Aesthetics

The speaker grille seamlessly aligns with the complex contours of the compound bag-lid, maintaining a cohesive and integrated aesthetic across the entire assembly. For improved sealing, it is secured to the bucket using four rubber O-rings, while a custom badge accents the Hot Rod Red trim rings to add a finishing touch.

IDHS™ (Inductive Damping Heat Sink)

The speaker fins push heat away from the voice coils to reduce speaker temperature and distortion to produce the clearest-possible audio.

Bridge Mounted Design

The offset Midrange and Tweeter speaker design eliminates acoustic reflection and maximizes audio output. The specific left and right Midrange and Tweeters are also aligned for optimal riding position, making sure the audio is always directed in the proper location, giving the best on-road audio experience.

ICC+

The Integrated Concealed Crossover boasts a hyper-efficient design and produces the clarity and output usually only found in traditional component speaker set-ups, plus the design allows for a quicker install.

Vibration-Tested

Tested and then re-tested to ensure supreme durability. These speakers have endured extreme conditions and then vibration validation all to make sure they stand the test of time.

Saddlebag Cut-In Install

This covers installation of the Harley-Davidson® baglid cut-in kit. This procedure is the same for both 2024 and newer Street Glide and Road Glide models with factory blank lids.

6x9" Speaker Lid Install

This covers installation of the Harley-Davidson® Stage III saddlebag 6x9" speakers. This procedure is the same for both 2024 and newer Street Glide and Road Glide models.

Street Glide 6.5" Install

This covers installation of the Harley-Davidson® Stage III upper fairing 6.5" speakers on 2024 and newer Street Glide models.

Road Glide 6.5" Install

This covers installation of the Harley-Davidson® Stage III upper fairing 6.5" speakers on 2024 and newer Road Glide models.

Street Glide Amp Install

This covers installation of the Harley-Davidson® Primary Amplifier kit on 2024 and newer Street Glide models.

Road Glide Amp Install

This covers installation of the Harley-Davidson® Primary Amplifier kit on 2024 and newer Road Glide models.

Specifications

PRIMARY AMP KIT:

  •

— PART NUMBER:

  • #76001294

— REQUIREMENTS:

  • Required for Stage III Speakers

— RATED POWER (RMS):

  • 500 Watts (125 Watts x 4)

— MEASURED POWER (RMS):

— FREQUENCY RESPONSE:

  • 40 Hz - 20 kHz

— TOPOLOGY:

  • Full-Range Class-D

— EFFICIENCY (AVERAGE):

  • > 75

— TOTAL HARMONIC DIST.:

  • <1% @ 4ohms, <1% @ 2-Ohms

— MAX CURRENT DRAW:

  • 54 A

— INTEGRATED DSP:

  • Yes

— DATA BUS:

  • A2B via IFCU

— HEATSINK:

  • Focused Mass Die-Cast Aluminum

— COOLING:

  • Intelligent Thermal Management

— OPERATING VOLTAGE:

  • 9 - 16 VDC

STAGE III FAIRING SPEAKERS:

  •

— NOMINAL DIAMETER:

  • 6.5"

— TWEETER SIZE:

  • 20 mm

— MIDRANGE SIZE:

  • 30 mm

— RESPONSE:

  • 50 Hz - 20 kHz (IEC-60260-5)

— CONE:

  • Polypropylene + UV Inhibitors

— SPIDER:

  • Nomex ™

— MOTOR:

  • N48 Neodymium

— IMPEDANCE:

  • 2Ω

— POWER HANDLING (EIA-426B):

  • 250W RMS (ea.)

— CROSSOVER:

  • ICC 12dB High-Pass

— SPL (1w/1m):

  • 92 dB

STAGE III SADDLEBAG SPEAKERS:

  •

— NOMINAL DIAMETER:

  • 6x9"

— TWEETER SIZE:

  • 20 mm

— MIDRANGE:

  • 30 mm

— RESPONSE:

  • 38 Hz - 20 kHz (IEC-60260-5)

— CONE:

  • Polypropylene + UV Inhibitors

— SPIDER:

  • Nomex™

— MOTOR:

  • N48 Neodymium

— POWER HANDLING (EIA-426B):

  • 250W RMS (ea.)

— IMPEDANCE:

  • 2Ω

— SPL:

  • 89 dB

— CROSSOVER:

  • ICC 12dB High-Pass

STAGE III SUPER KIT:

  •

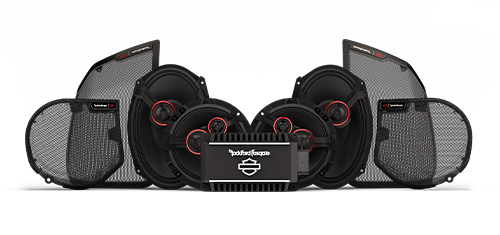

STREET GLIDE (FLHX) KIT:

  • #76001539

— Includes #76001294:

  • Primary Amplifier

— Includes #76001456:

  • SG Fairing Speakers & Grilles

— Includes #76001499:

  • 6x9 Saddlebag Spkrs & Grilles

— Includes #76001300:

  • Saddlebag Speaker Install Kit

STAGE III SUPER KIT:

  •

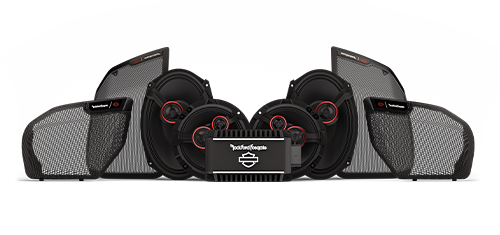

ROAD GLIDE (FLTRX) KIT:

  • #76001540

— Includes #76001294:

  • Primary Amplifier

— Includes #76001457:

  • RG Fairing Speakers & Grilles

— Includes #76001499:

  • 6x9 Saddlebag Spkrs & Grilles

— Includes #76001300:

  • Saddlebag Speaker Install Kit
