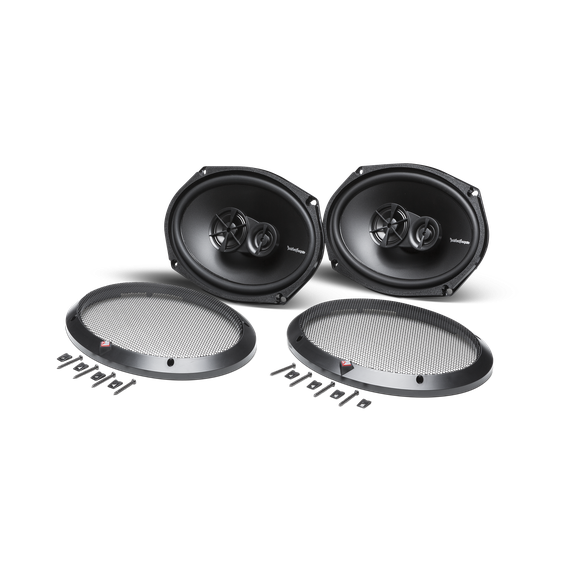

Three Quarter Beauty Shot of Products Included in Kit
Front View of Speaker without Trim Rings or Grille
Profile View of Speaker without Trim Rings or Grille
Aerial Bottom View of Speaker without Trim Rings or Grille
Eye Level View of Speaker without Trim Rings or Grille
Front View of Products Included in Kit
Front View of Speaker with Trim Rings and Grille
Profile View of Speaker with Trim Rings and Grille
Three Quarter Beauty Shot of Products Included in Kit
Front View of Speaker without Trim Rings or Grille
Profile View of Speaker without Trim Rings or Grille
Aerial Bottom View of Speaker without Trim Rings or Grille
Eye Level View of Speaker without Trim Rings or Grille
Front View of Products Included in Kit
Front View of Speaker with Trim Rings and Grille
Profile View of Speaker with Trim Rings and Grille
Three Quarter Beauty Shot of Products Included in Kit

Prime 6"x9" 3-Way Full-Range Speaker (pr) R169X3

The R169X3 is a 6”x9” 3-way full-range speaker rated at 65 watts RMS for a new generation of factory replacement speakers. Kit includes integrated high-pass crossovers and mounting hardware.  Sold in pairs (2 each).

Read More
1 Review
Find Dealer

4"

5.25"

6.5" 3-Way

6.75"

6"x8"

6x9" 2-Way

6x9" 3-Way
Overview Technologies Specifications Support Accessories
Overview

The 6"x9" Prime full-range speakers offer Rockford Fosgate sound quality at a fantastic value. Perfect for replacing factory speakers, they feature polypropylene cones and a silk dome pole mounted Piezo tweeter and midrange. Includes grilles so they look as good as they sound.

FEATURES AT A GLANCE

  • Integrated tweeter crossover
  • Rubber surround
  • Vacuum Polypropylene cone
  • Sold in pairs (2 each)
  • Silk dome pole mounted Piezo tweeter and midrange
  • Stamped steel basket
  • Grilles and mounting hardware included
  • 1 Year Warranty
Technologies
CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

Learn more
ICC Crossover

The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier ...

Learn more
Specifications
CEA-2031 Compliant
CEA-2031 Guidelines
Speaker Type
3-Way Coax
Tweeter Size
(Nominal Diameter)
0.50" (12.7 mm)
Tweeter Mounting Depth
Midrange Size
(Nominal Diameter)
6"x9"
Midrange Mounting Depth
2.85" (72.4 mm)
Nominal Impedance (Ohms)
4-Ohm
Frequency Response (Hz)
47Hz - 20kHz
Crossover
Tweeter High-Pass (HP): 6dB
Mounting Hardware
Yes
Shipping Weight
6.6 Lbs.
(2.99 kg.)
Sensitivity
(dB @ 1W/1M)
90
Grille/Trim Ring Included
Yes
Power Handling (RMS)
65 Watts RMS
130 Watts Max
Compatibility
Support

Knowledge Base Articles


Show all Knowledge Base topics

Ask Our Experts

Return Authorization

Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.


Return Authorization Process



Diagnose First

Prior to requesting an RA, try to diagnose the failure. Many products we receive are sent back with No Trouble Found, usually due to incorrect installation. Use our Knowledge Base for troubleshooting assistance.



Contact Customer Support

Please call us during normal business hours at 1-800-669-9899 (option #1) and be prepared with the following information:

  • First and Last Name with complete Shipping Address
  • Product Name (T0D415)
  • Serial Number (12 or 13 digit number)
  • Failure Diagnosis (no output, no power LED, etc.)
  • Scanned copy of Original Receipt emailed to [email protected] (dealer name, purchase date, and item purchased must be legible)
  • Credit/Debit Card (if paying for out-of-warranty claims)
  • No money orders or checks.


Shipping Instructions

When shipping your product, your package MUST have the following information:

  • RA# Printed Outside of Box (as large as possible)
  • Copy of Original Receipt


Shipping Address

Ship your product (UPS or FedEx preferred) to the following:


Rockford/ AJR International
300 Regency DR
Glendale Heights, IL 60139
RA#:_______________________
