6x9" Aftermarket Saddlebag Cut-In Speaker Kit for 2024+ Harley-Davidson HD24BL69
6x9" Aftermarket Saddlebag Cut-In Speaker Kit for 2024+ Harley-Davidson HD24BL69
Precision-Tuned: Featuring long-throw woofers for high output and deep, extended low-end response, these speakers deliver powerful yet balanced sound. The large voice coil and extended frequency range enhance bass output, ensuring louder, more dynamic, and long-lasting performance.
Performance Engineered: Each element of these 6X9 speakers is meticulously engineered for peak performance. Now handling 40% more power than before, these speakers feature a heat-resistant motor structure and radiator ring to efficiently dissipate heat, ensuring consistent, powerful sound even under the most demanding conditions.
Direct Fitment: The patented top-loading bucket and backer design helps to ensure smooth, precise cutting over the bag lid surface, we developed a newly designed precision-cut template with parallel ribbing. Our robust, injection-molded, tube-style gasketed saddlebag speaker mount inserts from the outside of the lid, making it possible to accommodate larger 6x9 speakers for unmatched audio performance.
Element Ready™: Purpose-built for the harsh motorcycle environment, this kit includes watertight, grommeted installation harnesses with OEM-style and Deutsch™ DT connectors. Designed to withstand water, dirt, UV exposure, and constant vibration, it ensures long-lasting, reliable audio performance.
Compatibility: Please review compatibility tab for fitment before purchase.
2024+ Saddlebag Kit | Launch
2024+ Saddlebag Kit | Overview
2024+ Saddlebag Kit | Installation (jumps to 18:03)
2024+ Saddlebag Kit | Tuning Guide
Download RF CONNECT™ to setup the amplifier:
Checking product inventory...
$849.99
–+
Notify Me When Back In Stock:
Snap offers lease-to-own financing.
Overview
Loud. Clear. Relentless.

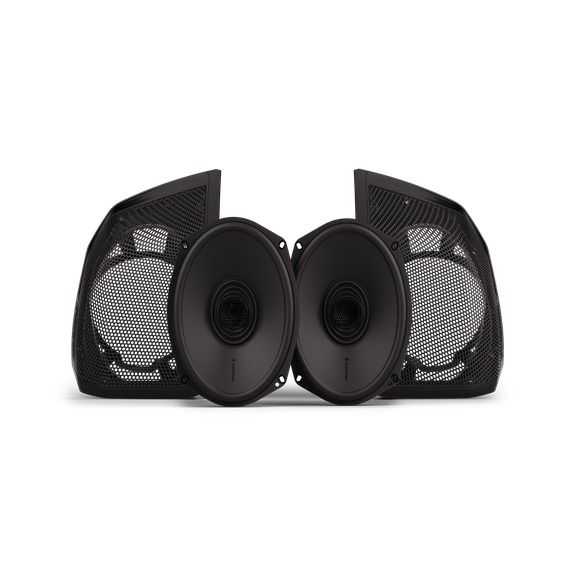

The HD24BL69 is a high-performance, 2-speaker, cut-in kit for factory Harley-Davidson™ saddlebag lids.
Kit Includes:
• (2) 6x9” TMS 2.0 speakers
• (2) Cutting templates
• (2) Speaker bucket systems
• (2) Baglid grilles
• (1) Installation harness
• Mounting hardware
FEATURES AT A GLANCE
- Purpose-Built for 2024+ Harley-Davidson® touring motorcycles
- Compatible with Harley-Davidson® Power Lock kit
- Integrated motor cover prevents valuables in saddle bag from heat damage
- Extended frequency range for increased low-end response
- Precision-tuned, long throw, high output design
- TMS24-69 6x9” Element Ready™ saddlebag speaker for Harley-Davidson®
- Direct saddlebag fitment for seamless upgrades in factory H-D® saddlebags
- Precision template with external ribs promote accurate cuts with jig or air saws
- U-channel formed by mating top bucket and backer ring fight water intrusion
- Molding ribs create a stable foundation to reduce loss of acoustic energy
- Higher speaker mounting preserves saddlebag space
- Top-loading bucket design with self-centering backer ring
- Gasketed screws thread into brass inserts for increased seal and rigidity
- Speaker grille secures to bucket using four rubber O-rings for better sealing
- Grille with custom side badge finish follows compound bag-lid lines
- Element Ready™ to withstand the harsh outdoor environment like dust, water, and UV rays
- Watertight harness protection using Molex MX150 & Deutsch DT connections
- 2-Year Warranty
Videos
HD24BL69 | Product Launch
Engineered to be loud, clear, and relentless, the Saddlebag-lid Cut-in Kit delivers perfectly balanced sound—rich mids, strong bass, and ultra-sharp highs.
HD24BL69 | Product Overview
Engineered for the ultimate ride, these speakers deliver a perfectly balanced sound profile—featuring enhanced mids, deep, powerful bass, and crystal-clear highs.
HD24-STG2 & STG3 | Installation
We’ll walk you through the installation process for our new aftermarket Stage-2 and Stage-3 audio systems for 2023.5 and newer Harley-Davidson models with the newer Skyline™ OS (jump to 18:03).
Technologies

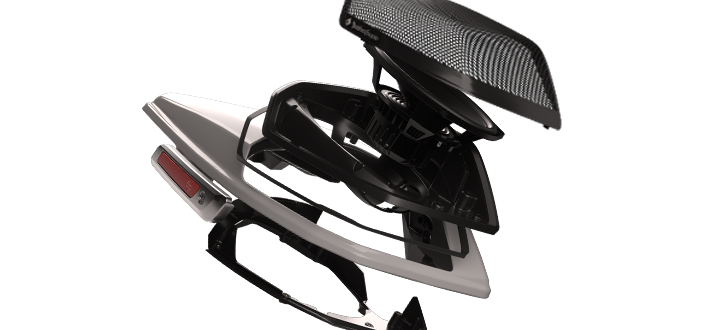

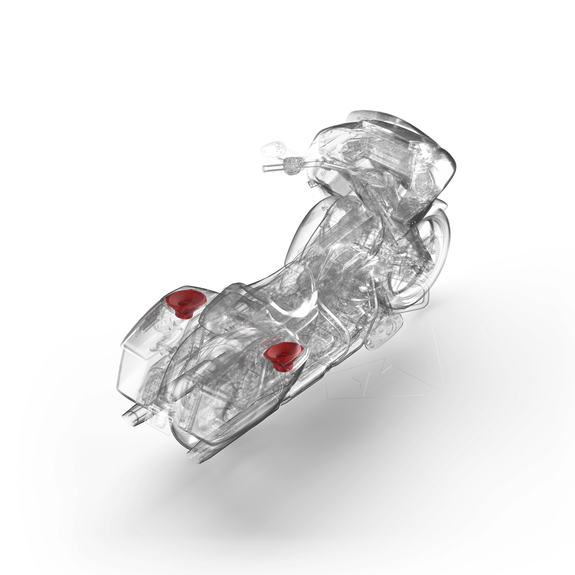

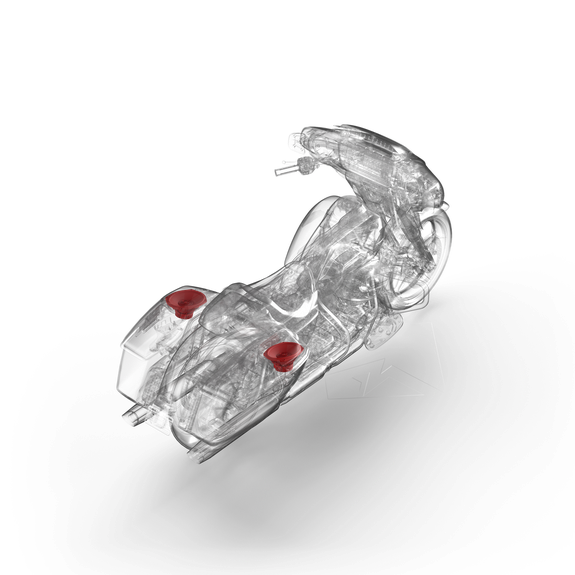

Direct Saddlebag Fitment
Direct saddlebag fitment for a seamless upgrade to factory H-D® ABS saddlebags.
Coherent-Phase Alignment
Precisely recessing the tweeter inside the woofer voice coil geometry ensures phase-aligned sound waves from both drivers arrive at the listener’s ears simultaneously. This coherent-phase response minimizes destructive interference and phase cancellation, resulting in significantly improved stereo imaging, spatial accuracy, and vocal clarity.
Neodymium Motors
Neodymium is up to 35% lighter and 65% smaller over traditional ferrite and ceramic, while having the same motor strength (Bl). This allows the speaker to fit factory locations without any modification.
IDHS™ Inductive Damping Heat Sink
Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion and back EMF (Electo-Magnetic Force) of the woofer. IDHS also utilizes fins to radiate heat and reduce voice coil temperature.
Performance Engineered
Rooted in a legacy of American innovation, our products are proudly designed and developed in Tempe, Arizona, reflecting decades of expertise.
CTA-2031
Power handling on Rockford Fosgate speakers conform to CTA-2031 industry standards.
Learn more
CTA-2031
Power handling on Rockford Fosgate speakers conform to CTA-2031 industry standards.
Verified with Klippel
Klippel is a speaker certification program that tests for consistent mechanical and acoustic performance.
Learn more
Verified with Klippel
Klippel is a speaker certification program that tests for consistent mechanical and acoustic performance.
Top-Loaded Speaker Cut-In | Motorcycle
Patent: 12,720,244
The top-loading bucket and backer design is patented.
Learn more
Top-Loaded Speaker Cut-In | Motorcycle
Patent: 12,720,244
The top-loading bucket and backer design is patented.
IPX6 Water Intrusion Rating
(ISO 20653) Water projected in powerful jets from any direction shall have no harmful effects.
Learn more
IPX6 Water Intrusion Rating
(ISO 20653) Water projected in powerful jets from any direction shall have no harmful effects.
ICC Crossover
The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier …
Learn more
ICC Crossover
The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier installation.
UV Inhibitor Materials
Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested …
Learn more
UV Inhibitor Materials
Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested in accordance with ASTM D4329 testing and certification procedures.
Vibration Resistant
(ISO 60068-2-64) Components are able to withstand shock and vibration conditions common with outdoor vehicles.
Learn more
Vibration Resistant
(ISO 60068-2-64) Components are able to withstand shock and vibration conditions common with outdoor vehicles.
Specifications
Speaker Qty
2
Amplifier Type
N/A
Total Power
N/A
Grille/Trim Ring Included
Yes
Mounting Hardware
Yes
Shipping Weight
15 Lbs. (6.8 Kg)
In The Box
(2) TMS24-69 Speakers
(1) Baglid Cutting Template – left
(1) Baglid Cutting Template – right
(1) Mechanical Bucket – left
(1) Mechanical Bucket – right
(1) Mechanical Backer – left
(1) Mechanical Backer – right
(1) Baglid Grille – left
(1) Baglid Grille – right
(1) Wiring Harness – external
(1) Wiring Harness – Internal
1130-80758-01 AP Pack:
• (8) Grille Washer 4.3mm ID/9.1mm OD/3.1mm
• (16) Grille Screw, self-tapping, MX4.2 L=19mm
• (12) Bucket Washer 4mm ID/8mm OD/2mm
• (12) Bucket Screw M4x0.7
• (4) Template Screw, self-tap, M4x1.4, L=15.5mm
• (16) Nylon Cable Tie 0.17 x 8 in
• (10) Nylon Tie Holder, adhesive, 19mm sq, 5mm
(1) Baglid Cutting Template – left
(1) Baglid Cutting Template – right
(1) Mechanical Bucket – left
(1) Mechanical Bucket – right
(1) Mechanical Backer – left
(1) Mechanical Backer – right
(1) Baglid Grille – left
(1) Baglid Grille – right
(1) Wiring Harness – external
(1) Wiring Harness – Internal
1130-80758-01 AP Pack:
• (8) Grille Washer 4.3mm ID/9.1mm OD/3.1mm
• (16) Grille Screw, self-tapping, MX4.2 L=19mm
• (12) Bucket Washer 4mm ID/8mm OD/2mm
• (12) Bucket Screw M4x0.7
• (4) Template Screw, self-tap, M4x1.4, L=15.5mm
• (16) Nylon Cable Tie 0.17 x 8 in
• (10) Nylon Tie Holder, adhesive, 19mm sq, 5mm
Compatibility
REQUIRED Skyline™ OS Version 4125D or 5057D |
REQUIRED H-D® ABS Saddlebags3 |
YES H-D® Power Lock2 |
NO Factory Speaker Lids3 |
NO Harley-Davidson® AudioSKY1/2/3 |
NO 200W Base AmpSKY0 |
NO 500W Primary AmpSKY1/2/3 |
|---|
 MODEL |
CHASSIS |
2023 |
2024 |
2025 |
|---|---|---|---|---|
 Road Glide® |
FLTRX | X | ✅ | ✅ |
 Road Glide® ST |
FLTRXST | X | — | — |
 Road Glide® Special |
FLTRXS | X | — | — |
 Road Glide® Special 120th Anniversary |
FLTRXSANV | X | — | — |
 Street Glide® |
FLHX | X | ✅ | ✅ |
 Street Glide® ST |
FLHXST | X | — | — |
 Street Glide® Special |
FLHXS | X | — | — |
 Street Glide® Special 120th Anniversary |
FLHXSANV | X | — | — |
YES Model IS compatible |
NO Model NOT compatible |
NOT AVAILABLE Model not produced this year |
|---|
| MODEL |
CHASSIS |
2023 |
2024 |
2025 |
|---|---|---|---|---|
 Electra Glide Highway King |
FLHFB | X | — | — |
 Road King® Special |
FLHRXS | X | X | X |
| MODEL |
CHASSIS |
2023 |
2024 |
2025 |
|---|---|---|---|---|
 Road Glide® Limited |
FLTRK | X | X | — |
 Street Glide® Ultra |
FLHXU | — | — | ✅ |
 Ultra Limited |
FLHTK | X | X | — |
 Ultra Limited 120th Anniversary |
FLHTKANV | X | — | — |
 Ultra Limited Shrine Edition |
FLHTK | X | — | — |
| MODEL |
CHASSIS |
2023 |
2024 |
2025 |
|---|---|---|---|---|
 CVO Road Glide® |
FLTRXSE | XSKY2 | XSKY2 | XSKY2 |
 CVO™ Road Glide® RR |
FLTRXRRSE | — | — | ✅ |
 CVO Road Glide® ST |
FLTRSXTSE | — | ✅SKY2 | ✅SKY2 |
 CVO Road Glide® Limited 120th Anniversary |
FLTRKSEANV | XRF1 | — | — |
 CVO Street Glide® |
FLHXSE | XSKY2 | XSKY2 | XSKY2 |
| MODEL |
CHASSIS |
2023 |
2024 |
2025 |
|---|---|---|---|---|
 Freewheeler® |
FLRT | XNR | XNR | XNR |
 Road Glide 3 |
FLTRT | X | X | X |
 Tri Glide® Ultra Classic® |
FLHTCUTG | X | X | X |
 Tri Glide® Ultra 120th Anniversary |
FLHTCUTGANV | X | — | — |
GRAY TEXT
indicates nomenclature used on some early models and later inherited.
2
H-D® Power Lock on factory Harley-Davidson bags are compatible.
3
Saddlebags must be factory Harley-Davidson® ABS plastic to insure proper fitment with bag-lid and subwoofer kits.
Fiberglass saddlebags and lids are not compatible. Color matched speaker lids are not compatible.
4
Stretched Saddlebags not optimized for kits with subwoofers. Contact technical support for suggested harness brace.
5
Tour-Pak® must be detached in order to install and remove subwoofer enclosures.
NR
No Radio equipped from factory.
RF1
RF Stage I: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and saddlebag amplifier.
RF2
RF Stage II: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and saddlebag amplifier.
SKY0
Skyline Base Audio: Factory equipped with Skyline OS, Harley-Davidson 2-way base speakers and 200W amplifier.
This system replaces and is not designed to be used with factory equipped audio.
SKY1
Skyline RF Stage I: Factory equipped with Skyline OS, "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and 500W primary amplifier.
This system replaces and is not designed to be used with factory equipped audio.
Models with factory Harley-Davidson® Saddlebag Speaker Lids will also require TMS24-69 speakers.
SKY2
Skyline RF Stage II: Factory equipped with Skyline OS, "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and 500W primary amplifier.
This system replaces and is not designed to be used with factory equipped audio.
Models with factory Harley-Davidson® Saddlebag Speaker Lids will also require TMS24-69 speakers.
SKY3
Skyline RF Stage III: Factory equipped with Skyline OS, "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way high-output speakers and 500W primary amplifier.
This system replaces and is not designed to be used with factory equipped audio.
Models with factory Harley-Davidson® Saddlebag Speaker Lids will also require TMS24-69 speakers.
— Boom!™ is a Trademark of Harley-Davidson USA, Inc.
— Harley-Davidson®, H-D®, Road King®, Road Glide®, Street Glide®, Ultra Classic®, Tri Glide®, Freewheeler®, and Tour-Pak® are Registered Trademark of Harley-Davidson USA, Inc.
— SiriusXM® is a Registered Trademark of Sirius XM Radio Inc.
Support
Knowledge Base Articles
- Keep Your Harley-Davidson IFCU Updated
- 2024+ TMS Saddlebag Speakers for Harley-Davidson - owner's manual
- Dealers that can flash a Harley-Davidson® radio
Show all Knowledge Base topics
Ask Our Experts
Return Authorization
Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
Popular Questions
2023.5+ Skyline OS Awareness Statement
Updated Software Ensures Performance
Your Harley-Davidson® motorcycle was built to deliver more than just the ride; it’s designed to provide an elevated experience powered by advanced technology. To ensure you’re getting the best performance, compatibility, and features from your bike and our products, it’s essential to keep your Infotainment Control Unit (IFCU) updated with the latest software.
Running outdated software may limit functionality, reduce performance, and keep you from unlocking the full potential of your Rockford Fosgate motorcycle audio system. Staying current ensures you enjoy the smoothest integration with our equipment and the most advanced features available.
What is the IFCU?
The Harley-Davidson® Infotainment Control Unit (IFCU) is the digital dashboard system introduced on select 2023.5 and newer CVO and Touring models. Powered by Skyline OS, it replaces the older “BOOM! Box™” infotainment system with a modern, fully digital display that brings riders enhanced control, seamless connectivity, and a smarter riding experience.
Minimum Version
- Ensure the IFCU software version is at least 4125D.
- Always use the most recent software version, even if it's greater than the above versions.
Why Updates Matter
- Peak Performance – ensures your bike and equipment work at their absolute best
- Full Compatibility – unlocks seamless integration with the latest accessories and upgrades
- Future-Ready – stay aligned with Harley-Davidson’s evolving technology ecosystem
Stay Updated. Ride Smarter. Experience More.
Use the below link or QR code to download software updates from the Harley-Davidson website:
www.h-d.com/infotainment-support
Complete Your System
Rockford Fosgate products are built to work together seamlessly for the ultimate experience.
+
Stage-2 Aftermarket Audio Kit for 2024+ Harley-Davidson
HD24-STG2
Performance Engineered: Each component of the Stage-2 kit is meticulously engineered for peak performance. The 6.5” speakers feature a heat-resistant motor structure and radiator ring that efficiently dissipate heat, ensuring …
View Product
Click to explore some of the products that work best.
-
HD24-STG2
Stage-2 Aftermarket Audio Kit for 2024+ Harley-Davidson
Performance Engineered: Each component of the Stage-2 kit is meticulously engineered for peak performance. The 6.5” speakers feature a heat-resistant motor structure and radiator ring that efficiently dissipate heat, ensuring …
Click to explore some of the products that work best.
HD24-STG2
Be first to hear about the latest products.
Sign up for product updates.
